The 0105-14 is a StarModul wall connector with an angled outlet for 10×5 cm rectangular tubes. It is screwed to a wall and provides an angled outlet for the beam of a porch or an attached roof. It is assembled by screwing, without welding, and includes the screws.
This is the part that joins the roof to the facade in porches and extensions attached to the home. The 10×5 cm rectangular tube provides more depth than the 5×5 cm one with little weight, and works well as a beam or purlin in frames and roofs. View the 3D viewer on this page to see the exact shape of the part.
Fit the tubes into the piece, check the corner bracket, and bolt it together. No welding or special machinery is needed, so the structure can be assembled directly on site. For this connector you will need galvanized steel tube, 10×5 cm (2 mm thick); we can send it cut to size.
See also: all connectors with flanges for 10×5 cm tube and the 3D structure configurator, which calculates the connectors and tubes for your project.
Yes. Each joint is delivered with its screws.
No. The entire StarModul system is screw-mounted, so it can be assembled and disassembled without welding.
With stock, 2–3 days in Catalonia and Aragon and 7–8 days in the rest of Spain. Without stock, 2–3 weeks.
Yes. We work to measure and can send you the complete kit: joints, cut tubes, facade and roof panels, trims, and screws. Request a quote.
| Weight | 1 kg |
|---|---|
| Measurement | 10 x 5 cm |
3,76€ (excl. VAT)
Explore the interactive model to view the product’s geometry and configuration from different angles.

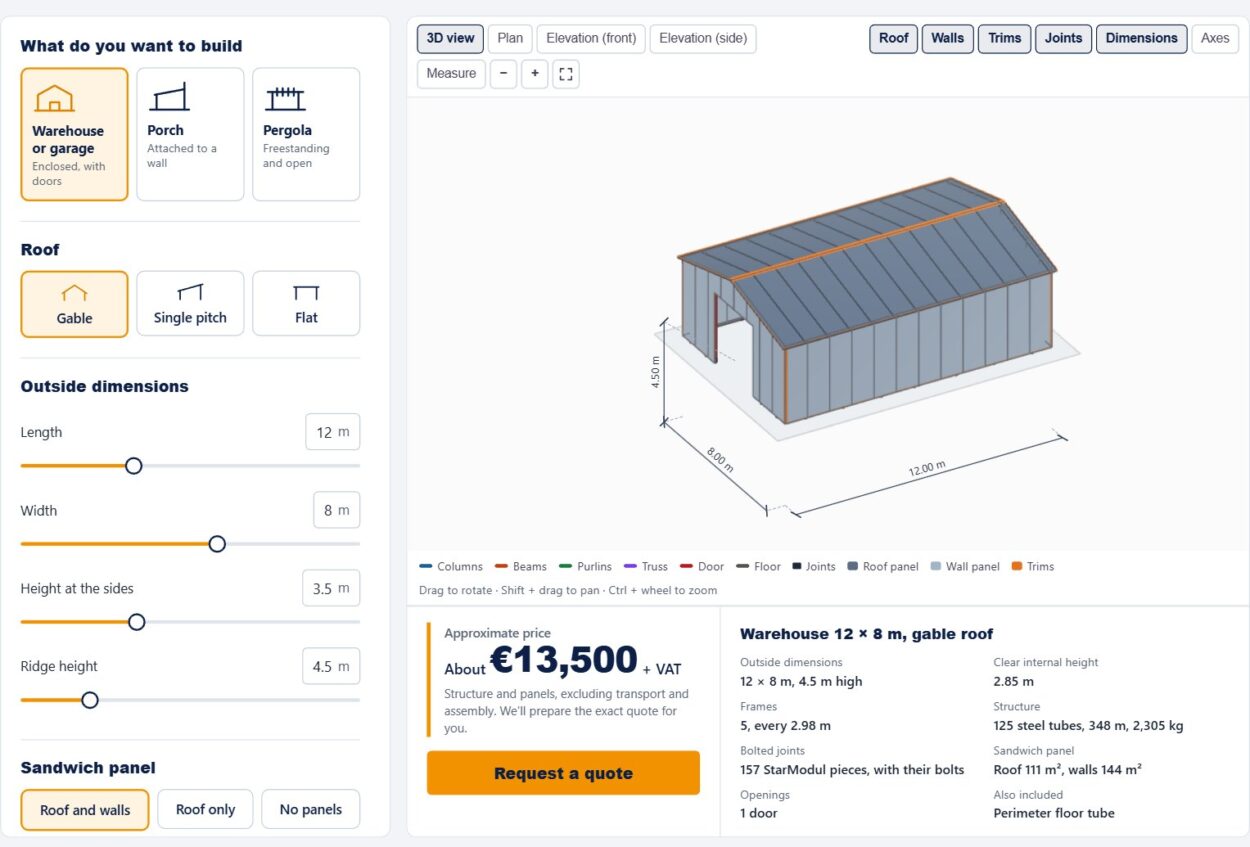

With the StarModul 3D steel structure configurator, you can define the dimensions, geometry, and initial configuration of a structure using our bolted connection system.
The tool generates a preliminary list of the necessary joints, a quantity takeoff for pipes and profiles, and an initial assessment of the configured components.
